BRS075132
2019-09-19
-
Part NO.
Open type:BRS075132
-
Dimension
di:75mm
Da:132mm
H:68mm
-
Mounting
Li:83mm
La:120mm
-
Basic Load Ratings
Cr:-kN
Cor:-kN
-
Gear Teeth
m:-mm
z:-mm
-
Equivalent Model
Mass:4kg
- Features
- Mounting

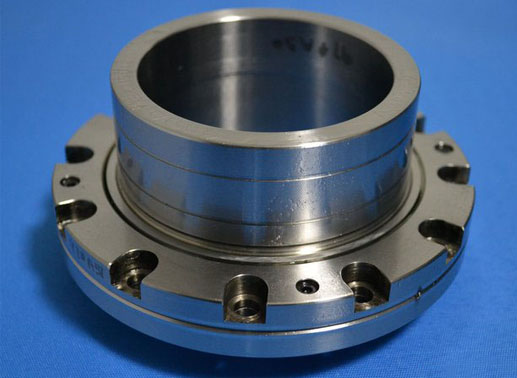

BRS075132 Detail Specifications:
Type of guide Roller Space retainer Yes Material GCr15 Standard lubrication method Grease lubrication Oil hole Yes Sealing Open Surface treatment Black oxide treated, phosphate treatment, other Radial clearance CC0, C0 Rotation accuracy P5/P4 Working temperature -15℃ ~ 80℃ BRS075132 Crossed roller bearing features:
1. Integrated inner ring and outer ring ensures high rigidity.
2. Sustain radial, axial loads at the same time.
3. Assembled with high precision cylindrical rollers and high quality space retainers, with special designed raceway, bearings can provide high rotation accuracy and loading capacity.
4. Customized mounting holes, easy to install and removeCrossed roller bearing with 75mm id mounting dimensions:

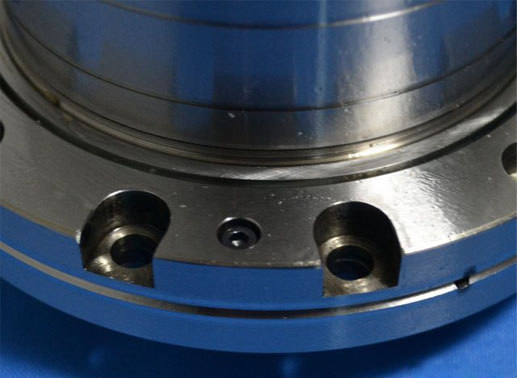

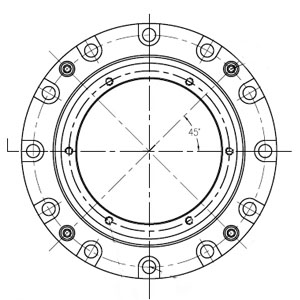

BRS075132 Bearing Mounting Holes
PCD of inner ring : 83mm
PCD of outer ring: 120mm
Inner ring mounting hole 6-M4 Depth 8mm
Outer ring mounting hole 12-φ6.8 drilled through, φ11 counter bore depth 6.5mm
Connecting bolts: 4-M4
Crossed roller bearings are usually for precision machinery. During production and inspection, it’s important to pay attention to its dimensional accuracy and radial/axial runout.
Installation method refers to RU series crossed roller bearing.
