010.08.178
2020-07-03
-
Part NO.
Open type:010.08.178
-

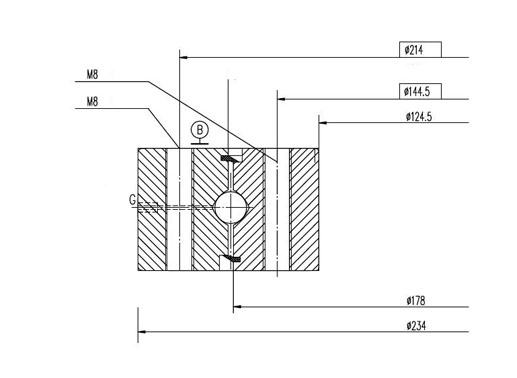

Dimension
di:124.5mm
Da:234mm
H:25mm
-
Mounting
Li:144.5mm
La:214mm
-
Basic Load Ratings
Cr:-kN
Cor:-kN
-
Gear Teeth
m:-mm
z:-mm
-
Equivalent Model
Mass:6kg
- Features
- Mounting
010.08.178 slewing bearing specifications:
Type of guide Steel balls Space retainer Yes Material 50Mn Standard lubrication method Grease lubrication Oil hole Yes (outer ring) Sealing NBR sealed both sides Surface treatment Available Axial clearance 0.07 ~ 017 mm Rotation accuracy 0.05/0.08 Working temperature -15℃ ~ 80℃ 010.08.178 four point contact ball slewing bearing features:
1. Thin cross-section slewing bearing with equal ring height and mounting height.
2. Support radial, axial loads and moment loads at same time.
3. Processed with high precision CNC and grinding finish, which enable bearings have less friction, higher rotation precision and longer service life.
4. BRS only select high quality raw material, which can ensure bearings hardness and wear resistance.
5. Specially designed lubricating system and sealing method, make sure bearings can operate under severe working enviorenment.
6. Customized mounting holes, easy to install and remove.Customized slewing bearing 010.08.178 mounting instructions:
1. Make sure the mounting surface is flat and clean, and free from burrs or
rough edge.
2. The unhardened zone is marked with an “S” on the slewing ring, it must be positioned outside the main load-carrying areas.
3. Commissioning of the slewing ring under sufficient load.
4. Adjust the backlash of gear and recheck it after final tightening of the bearing.
5. Fastening bolts. Place the bearing onto connecting structure and align the screw holes. Screw all the bolts in the holes first and follow the order as shown in diagram when tightening bolts in diagonally opposite sequence. Do not tighten bolts randomly.
6. Check the installation by rotating the assembled bearing arrangement. The torque should not show any excessive variation or “tight spots” during rotation.
