BRS Slewing Bearings SKF-RKS Medium Size Slewing Bearings

RKS single row four point contact ball slewing bearings have a simple structure and can offer many advantages for applications where there are light to medium axial, radial and moment loads.

RKS Medium Size Four-point Contact Ball Slewing Bearings Feature:

1. Gear teeth on the outer ring(RKS.061), inner ring(RKS.062) or without gear teeth(RKS.060).

2. Provide an exceptional moment, thrust, and radial load capacities.

3. Robust structure, high load capacity, and speed capability.

4. Easy installation, with mounting holes on both inner and outer ring.

RKS.061 slewing ring with outer gear

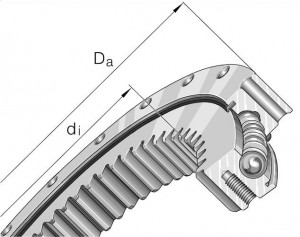

RKS.062 four point contact ball bearing with inner gear

RKS.060 medium size slewing bearing without gear

Application

RKS medium size four point contact ball bearing is cost-effective for light to medium-duty arrangements which do not require high precision, such as cranes, lifting platforms handling equipment, construction equipments.

RKS Medium Size Four-point Contact Ball Slewing Bearing Models:

Part NO. Dimension(mm) Mounting(mm) Base Load Ratings(kN) Gear Teeth Mass (kg)
di Da H Li La Cr Cor m z
RKS.061.20.0414 342 504 56 368 455 209 1010 31 VSA200414-N
RKS.061.20.0544 472 640.8 56 498 585 233 1350 43 VSA200544-N
RKS.061.20.0644 572 742.8 56 598 685 248 1580 52 VSA200644-N
RKS.061.20.0744 672 838.8 56 698 785 262 1840 59 VSA200744-N
RKS.061.20.0844 772 950.4 56 798 885 276 2100 71 VSA200844-N
RKS.061.20.0944 872 1046.4 56 898 985 286 2340 77 VSA200944-N
RKS.061.20.1094 1022 1198.4 56 1048 1135 303 2710 91 VSA201094-N
RKS.062.20.0414 326.5 486 56 375 460 209 1010 31 VSI200414-N
RKS.062.20.0544 445.2 616 56 505 590 233 1350 42 VSI200544-N
RKS.062.20.0644 547.2 716 56 605 690 248 1580 50 VSI200644-N
RKS.062.20.0744 649.2 816 56 705 790 262 1840 58 VSI200744-N
RKS.062.20.0844 737.6 916 56 805 890 276 2100 69 VSI200844-N
RKS.062.20.1094 985.6 1166 56 1055 1140 303 2710 91 VSI201094-N
RKS.062.20.0944 841.6 1016 56 905 990 286 2340 76 VSI200944-N
RKS.060.20.0414 342 486 56 368 460 209 1010 29 VSU200414
RKS.060.20.0544 472 616 56 498 590 233 1350 37 VSU200544
RKS.060.20.0644 572 716 56 598 690 248 1580 44 VSU200644
RKS.060.20.0744 672 816 56 698 790 262 1840 52 VSU200744
RKS.060.20.0844 772 916 56 798 890 276 2100 60 VSU200844
RKS.060.20.0944 872 1016 56 898 990 286 2340 67 VSU200944
RKS.060.20.1094 1022 1116 56 1048 1140 303 2710 77 VSU201094
