BRS Slewing Bearing SKF-RKS Customized Four-point Contact Ball Slewing Bearings

RKS single-row four-point contact ball slewing bearings have a simple structure and can offer many advantages for applications where there is light to medium axial, radial, and moment loads.

RKS Customized Four-point Contact Ball Slewing Bearings Feature:

1. Gear teeth on the outer ring or without gear teeth.

2. Provide an exceptional moment, thrust, and radial load capacities.

3. Robust structure, high load capacity, and speed capability.

4. Easy installation, with mounting holes on both inner and outer ring.

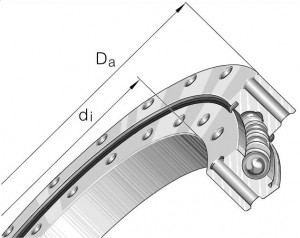

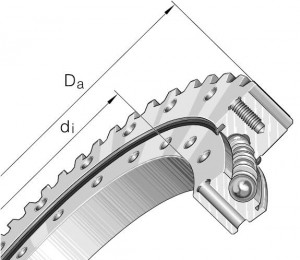

RKS.061 slewing ring with outer gearRKS customized slewing bearing without gear

Application

RKS customized four-point contact ball bearing is cost-effective for light to medium-duty arrangements that do not require high precision, such as cranes, lifting platforms handling equipment, construction equipment.

RKS Customized Four-point Contact Ball Slewing Bearing Models:

Part NO. Dimension(mm) Mounting(mm) Base Load Ratings(kN) Gear Teeth Mass (kg)
di Da H Li La Ca Coa m z
RKS.204040101001 868 1144 100 910 1050 588 4470 10 111 220
RKS.302070202001 1155 1398 80 1195 1316 449 3960 10 138 205
RKS.900155101001 125 234 25 144.5 214 80 280 - - 6
RKS.951145101001 189 332 45 215 305 239 675 - - 17
RKS.951175101001 335 475 45 360 450 219 1030 - - 27
